Kodak EasyShare LS633 zoom digital camera — User's Guide
Table of Contents > Product Overview

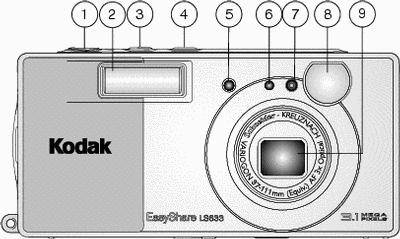

Front View
|
1 Shutter button |
5 Self Timer light |
|
2 Flash unit |
6 Light sensor |
|
3 Flash/Status button |
7 Microphone |
|
4 Self Timer/Burst button |
8 Viewfinder |
|
9 Lens |
|

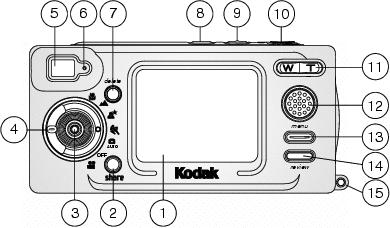

1 Camera screen |
8 Self Timer/Burst button |
|
2 Share button (Sharing Pictures and Videos) |
9 Flash/Status button |
|
3 Joystick (Move OK button (Press in) |
10 Shutter button 11 Zoom (Wide Angle and Telephoto) |
|
4 Mode dial (Mode Dial Settings) |
12 Speaker |
|
5 Viewfinder |
13 Menu button |
|
6 Ready light |
14 Review button |
|
7 Delete button |
15 Wrist strap post |
) Side Views

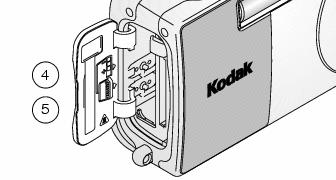

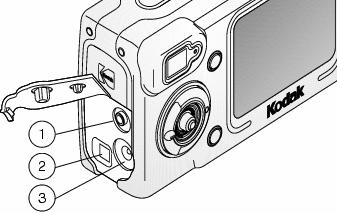

Side Views
|
1 Video Out |
4 Battery compartment |
|
|
2 USB Port |
5 Slot for optional MMC/SD card |
|
|
3 DC-In (5V) |
||

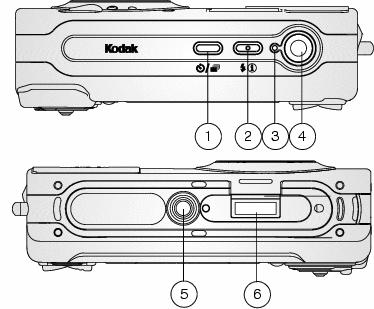

Top and Bottom Views
|
1 Self Timer/Burst button |
5 Tripod socket |
|
2 Flash/Status button |
6 Dock connector |
|
3 Power light |
|
|
4 Shutter button |
|
