Kodak EasyShare CX6200 digital camera — User's Guide


Table of Contents > Product Overview




Front View



1

Grip

5

Mode dial

2

Wrist strap post

6

Flash unit

3

Self Timer/Video light

7

Viewfinder lens

4

Shutter button

8

Lens

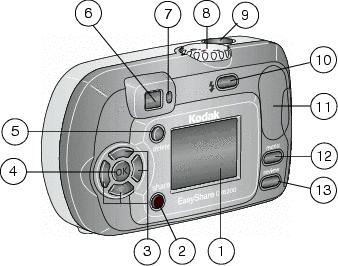

Back View



1

Camera screen

(LCD, liquid crystal display)

7

8

Ready light

Mode dial

2

Share button (Sharing Pictures and Videos)

9

Shutter button

3

Controller buttons

10

Flash/Status button

4

OK button

11

Thumb rest

5

Delete button

12

Menu button

6

Viewfinder

13

Review button

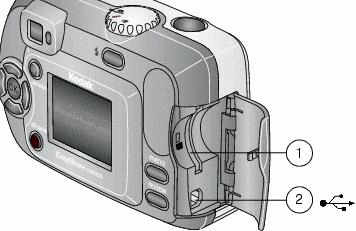

Side View



1

Slot for optional SD/MMC card

2

USB Port

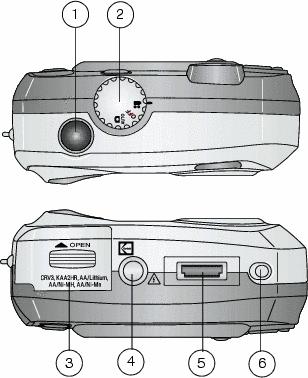

Top and Bottom Views



1

Shutter button

4

Tripod socket/locator, dock 6000

2

Mode dial

5

Dock connector

3

Battery door

6

Locator, dock 6000
