Kodak EasyShare printer dock — User's Guide

1

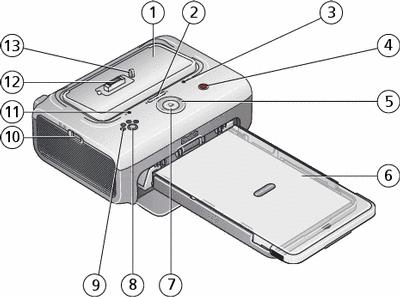

Universal camera insert (installed as shown)

8

Picture size button

2

Battery charging lights/ Refresh button

9

Picture size lights , , ,

3

Color cartridge light

10

USB connector (for Kodak 8-in-1 card reader or PictBridge compatible device)

4

Transfer button/light

11

Paper light

5

Left/Right control

12

Camera connector

6

Paper tray

13

Locator pin for camera

7

Print button/light

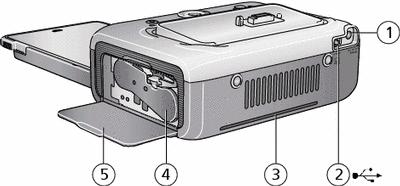

1

Power connector (DC-in)

4

Color cartridge (installed as shown)

2

USB connector (to computer)

5

Cartridge door

3

Slot for paper path
