Kodak EasyShare DX7440 zoom digital camera — User's guide


Table of Contents > Product Overview


Top, Front View



1

Wrist strap post

8

Flash unit

2

Zoom (Wide angle/Telephoto) ; Magnify (when Reviewing pictures)

9

Viewfinder

3

Shutter button

10

Lens

4

Flash Setting button

11

Microphone

5

Close-up/Landscape button

12

Light sensor

6

Exposure Bracketing/Burst button

13

Self Timer/Video light

7

Speaker

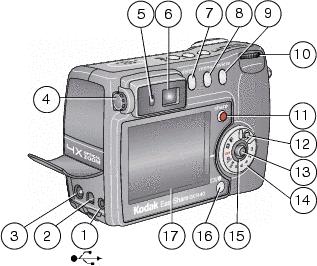

Side, Back View



1

USB Port

10

Jog dial

2

A/V Out, for television viewing

11

Share button

3

DC-In (5V)

12

Mode dial lock

4

Diopter dial

13

Joystick - move

OK - press in

5

Ready light

6

Viewfinder

14

Mode dial

7

Delete button

15

Power ring

8

Menu button

16

Display/Info button

9

Review button

17

Camera screen (LCD)




Bottom View



1

Dock connector

2

Tripod socket/locator for EasyShare camera dock or printer dock

3

Battery door, MMC/SD card slot
