Kodak EasyShare V1233 zoom digital camera — User's guide
Table of Contents > Product Overview
Installing the software

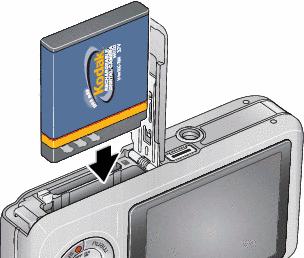

Loading the KLIC-7004 battery

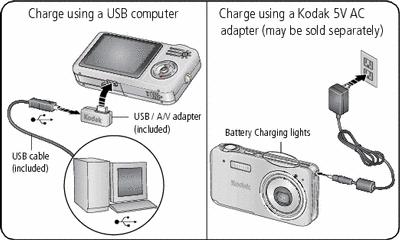

Charging the battery
Charge until all 3 Battery Charging lights are lit.
If the Battery Charging lights do not turn on during USB charging, ensure:
-
The USB cable is connected to a powered USB port
-
The computer is turned on, and not in sleep mode
For more on USB charging, visit www.kodak.com/go/USBcharging.
To purchase accessories, visit www.kodak.com/go/v1233accessories.
Turning on the camera

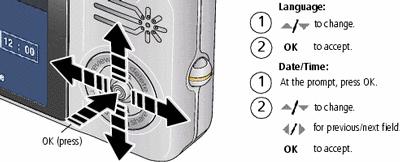

Setting the language, date/time

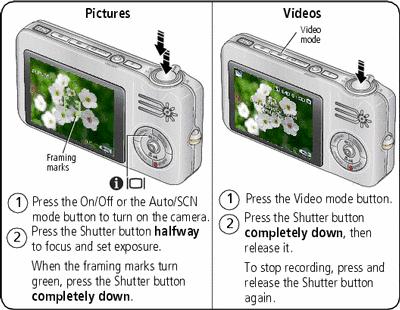

Taking a picture/video

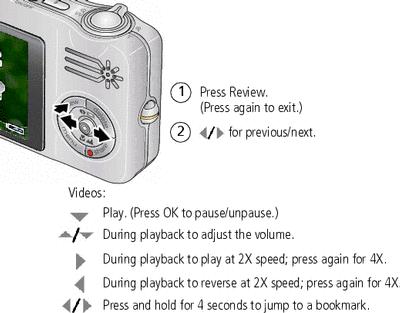

Reviewing pictures/videos

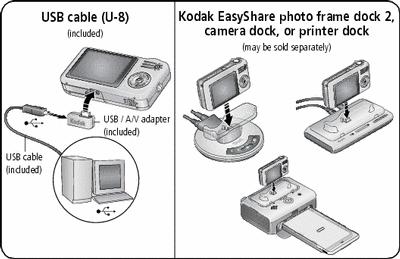

Transferring pictures/videos
For package contents, see your product package. To use a dock, see its Getting Started Guide. For dock compatibility, visit www.kodak.com/go/dockcompatibility. To purchase accessories, visit www.kodak.com/go/v1233accessories.

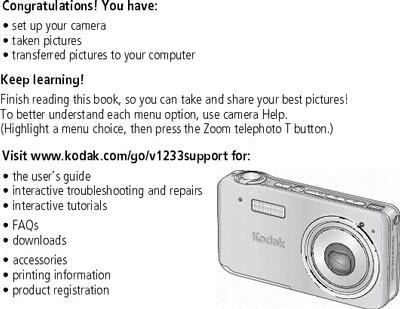

Keep learning about your camera!

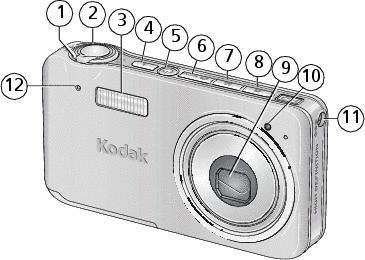

Front view
|
1 |
7 |
||
|
2 |
8 |
||
|
3 |
Flash |
9 |
Lens |
|
4 |
Flash button |
10 |
Video light/Self-timer light/AF assist light |
|
5 |
On/Off button |
11 |
|
|
6 |
12 |
| NOTE: | 6, 7, and 8 are also Battery Charging lights. |

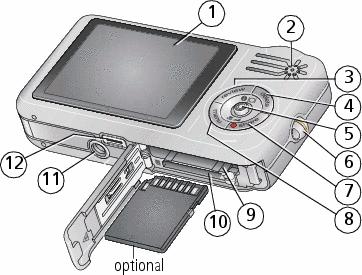

Back view
|
1 |
7 |
Share button |
|
|
2 |
Speaker |
8 |
|
|
3 |
Review button |
9 |
|
|
4 |
Delete button |
10 |
Slot for optional SD or MMC card |
|
5 |
Joystick |
11 |
|
|
6 |
12 |
; OK button (press) Previous Next
