Kodak EasyShare C713/C813/CD703 zoom digital camera — User's guide


Table of Contents > Product Overview

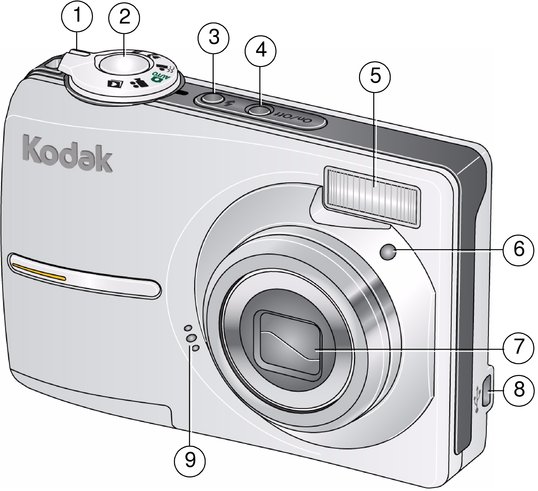

Front view



1

Mode dial

6

Self-timer light

2

Shutter button

7

Lens

3

Flash button

8

USB

4

On/Off button

9

Microphone

5

Flash

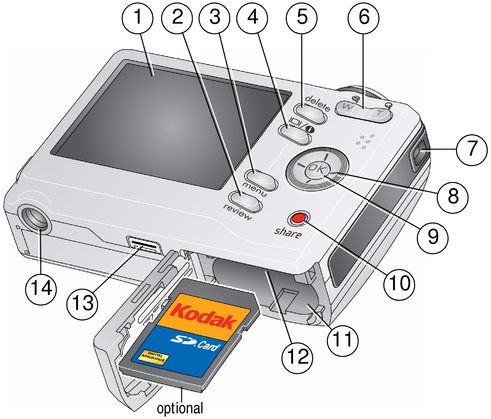

Back view



1

LCD

8

2

Review button

9

OK button

3

Menu button

10

Share button

4

LCD/Info button

11

Battery compartment

5

Delete button

12

Slot for optional SD card

6

Zoom button (Telephoto/Wide)

13

Dock connector

7

Strap post

14

Tripod socket
