KODAK EASYSHARE M893 IS digital camera — User guide


Table of Contents > Product Overview

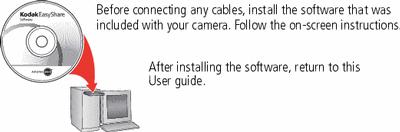

Installing the software

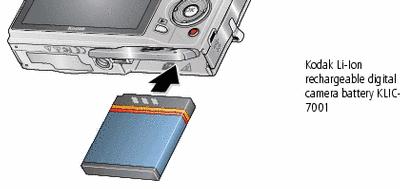

Loading the KLIC-7001 battery




Charging the KLIC-7001 battery


Kodak USB AC adapter

(included)

Learn more at: www.kodak.com/go/USBcharging.

First, turn OFF the camera. Charge until the Battery Charging light turns off (up to 3 hours).

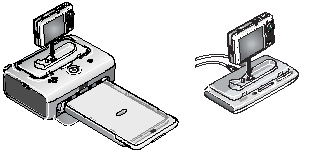

Kodak EasyShare camera or printer docks

(may be sold separately)

Kodak 5V AC adapter,

Kodak Li-Ion universal battery chargers

(sold separately)

Purchase accessories: www.kodak.com/go/accessories.

Your computer

Connect the USB cable to the computer's USB port, not a Hub.

Make sure the computer is turned on and not in sleep mode.

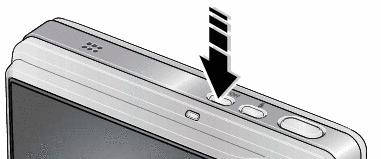

Turning on the camera




Setting the language, date/time

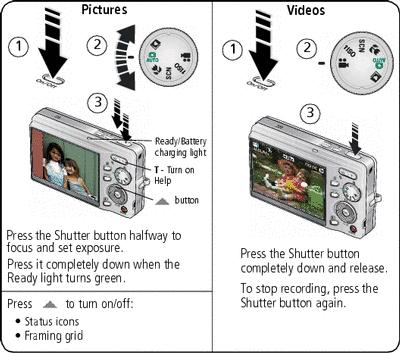

Taking a picture/video




Reviewing pictures/videos

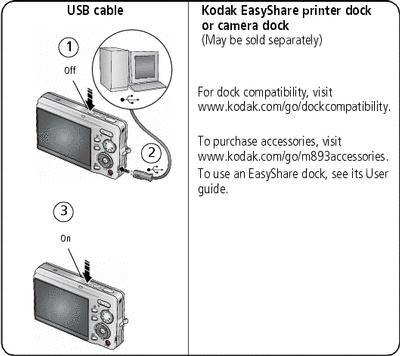

Transferring pictures/videos

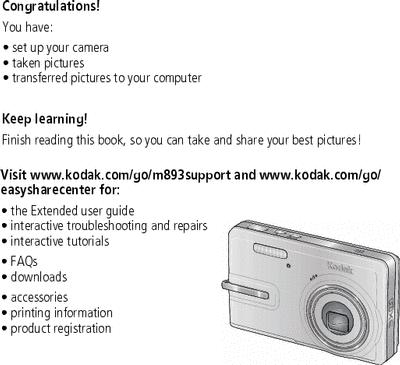

Keep learning about your camera!




Front view



1

Shutter button

5

Self-timer/video light

2

Flash button

6

Microphone

3

On/Off button

7

Speaker

4

Flash

8

Lens



Back view



1

LCD

9

OK/

2

Review button

10

Strap post

3

Ready/Battery charging light

11

USB port

4

Menu button

12

Share button

5

Delete button

13

Battery compartment

6

Zoom button (Wide/Telephoto)

14

SD/SDHC memory card slot

7

Mode dial

15

Dock connector

8

DC-In (5V) , for optional AC adapter

16

Tripod socket
