KODAK Theatre HD Player — Extended user guide

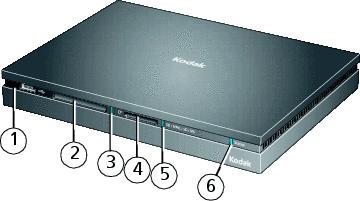

1 USB 2.0 port

4 SD/MMC/xD/MS* Card slot

2 COMPACTFLASH Card slot

5 SD/MMC/xD/MS Card status light

3 COMPACTFLASH Card status light

6 Main status light

*Also supports SDHC, miniSD/microSD with an adapter, RS-MMC, MMCplus, MMCmicro, SecureMMC, MS Pro, MS Duo, MS Pro Duo, MS Micro (M2), and MS Pro-HG.

Card status lights

Main status lights

Off: No card inserted; or card not recognized or formatted

Solid blue: Card inserted

Flashing blue: Card inserted, being accessed

Solid blue: Active network connection; no new pictures

Solid red: No network connection

Flashing blue: Active network connection; new Picture Mail or Picture Chronicle available

Flashing red: USB device not supported (flashes for 5 seconds)

1 Power port

6 Optical audio out connector

2 USB 2.0 port

7 HDMI connector

3 Audio out connectors

8 Ethernet connector

4 Video out connectors

9 Ethernet status lights

5 Coax audio out connector

Ethernet status lights

Both off: No active connection

Both on: Active 100BASE-T connection

One on: Active 10BASE-T connection

One flashing and one solid: Active connection transmitting or receiving data

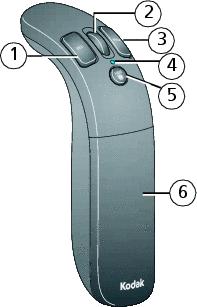

1 Select button

4 Power status light

2 Scroll wheel

5 Hide Cursor button

3 Back button

6 Battery door

Power Status light

Off: Remote is idle (low power mode)

Solid blue: Remote is active/in use

Flashing red: Batteries are low
