Kodak EasyShare Z1015 IS digital camera — Extended user guide

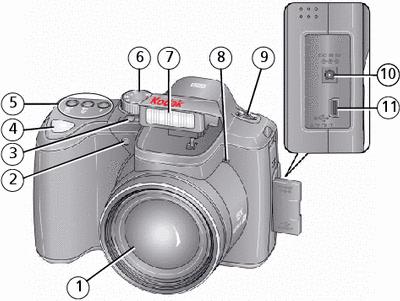

1

Lens

7

Flash

2

Low-light assist, Self-timer light, Video light

8

Microphone

3

On/Off switch

9

Jog dial (for PASM modes)

4

Shutter button

10

DC-In (5V), for optional AC adapter

5

• Drive button (Self-timer, Burst)

• Focus button (Close-up/Macro, Landscape, Manual)

• Flash button

11

USB/AV Out

6

Mode dial

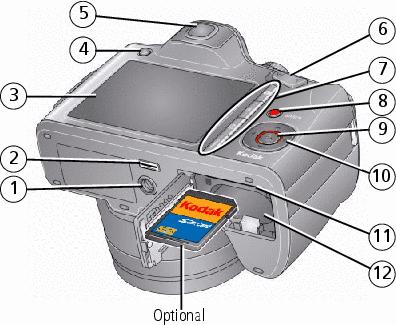

1

Tripod socket

7

Info/Review/Delete/Menu buttons

2

Dock connector

8

Share button

3

LCD

9

OK button

4

EVF/LCD button

10

5

EVF (Electronic viewfinder)

11

Slot for optional SD/SDHC card

6

Zoom (Wide Angle/Telephoto) button

12

Battery compartment
