KODAK EASYSHARE OLED Wireless Frame model OL7620 — User guide
Table of Contents > Product Overview
Front View
|
1 |
OLED screen |
4 |
LED lights |
|
2 |
Quick Touch Border (right side, tap only) |
5 |
Memory card slot - SD, SDHC, MMC, MS, xD |
|
3 |
Quick Touch Border (bottom, tap and slide) |
|
|
| NOTE: | When you turn on the frame or tap the Quick Touch Borders, the screen icons appear and LED lights turn on at touch-sensitive points along the Quick Touch Borders. To use the Quick Touch Borders, see Using your frame's Quick Touch Borders. |
|
See the Extended user guide |

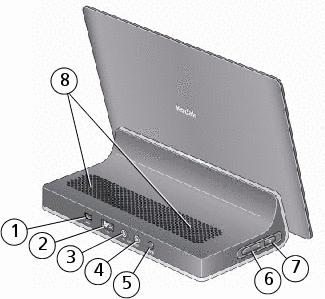

Back/Side View
|
1 |
USB connector (to computer) |
5 |
DC-In (12V) |
|
2 |
USB connector (to camera/USB device) |
6 |
Volume |
|
3 |
Audio In |
7 |
Power |
|
4 |
Audio Out |
8 |
Speakers |
