KODAK EASYSHARE Digital Frames — Extended user guide
Table of Contents > Product Overview

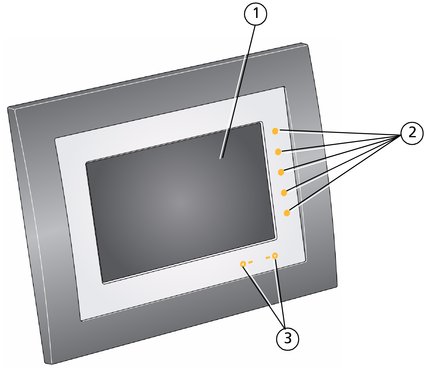

Front View
|
1 |
LCD screen |
|
Quick Touch Border: |
|
|
2 |
Side touch lights—tap only |
|
3 |
Bottom touch lights—slide between or tap arrows |
|
|
|
| NOTE: | When your hand is within 1 - 3 inches (2.5 - 7.6 cm) of the borders, the lights turn on and indicate where to touch. Tap a light on the right border to see the screen icons. To use the Quick Touch Border, see Navigating using the Quick Touch Border. |

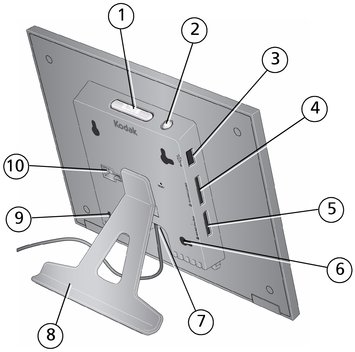

Back/side View
|
1 |
Mode button |
6 |
Wall mounting holes (3) - P730, P730m only |
|
2 |
7 |
DC In 5V power connector |
|
|
3 |
USB connector |
8 |
Frame stand (see Attaching the stand) |
|
4 |
Memory card slot - SD/MMC/xD/MS |
9 |
Security lock slot |
|
5 |
Memory card slot - MS/MS Pro Duo |
10 |
Stand attachment slot |
|
|
|
|
|
