KODAK EASYSHARE Digital Frame — Extended user guide

Table of Contents > Product Overview

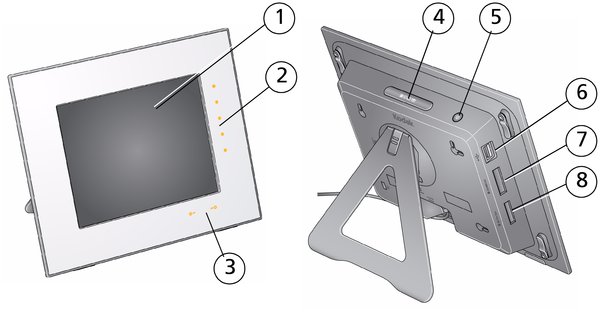

Front/Side Views

1	LCD screen	4	Mode button
Quick Touch Borders:		5	Power button
2	Side touch lights—tap only	6	USB connector
3	Bottom touch lights—slide between or tap arrows	7	Memory card slot - SD/SDHC/MMC/MS/XD
	Bottom touch lights—slide between or tap arrows	8	Memory card slot - MS Duo/Pro Duo

NOTE:

When your hand is within 1 - 3 inches (2.5 - 7.6 cm) of the borders, the lights turn on and indicate where to touch. Tap the lights to turn on the screen icons. To use the Quick Touch Borders, see Navigating using the Quick Touch Borders.

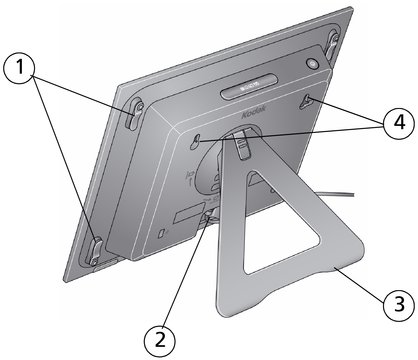

Back View

1	Faceplate attach clips (4)	3	Rotating stand
2	DC-In	4	Wall mounting holes (3)
