KODAK EASYSHARE Digital Frame — User guide


Table of Contents > Product Overview

See the Extended user guide

www.kodak.com/go/digitalframesupport

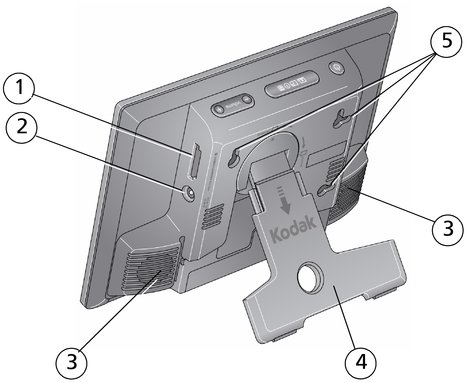

Back View



1

Memory card slot - SD/SDHC/MMC/XD/ MS/MS Pro Duo

3

Speakers (2)

4

Rotating stand

2

DC-In 12V 1.5A

5

Wall mounting holes (3)

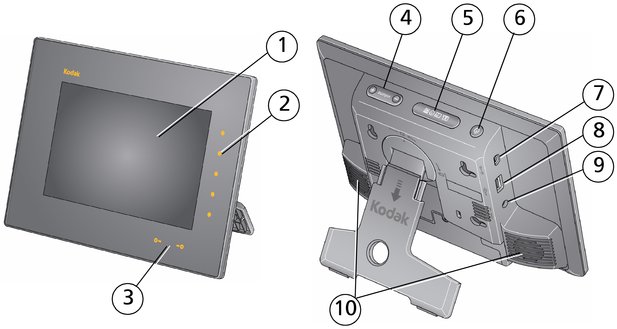

Front/Side Views



1

LCD screen

4

Volume button

Quick Touch Borders:

5

Mode button

2

Side touch lights—tap only

6

Power button

3

Bottom touch lights—slide/tap arrows

7

USB connector (to USB drive)

8

USB connector (to computer)

9

Audio out (headphones or speakers)

10

Speakers (2)

NOTE: When your hand is within 1 - 3 in. (2.5 - 7.6 cm) of the borders, the lights turn on and indicate where to touch. Tap a light on the right border to turn on the screen icons. To use the Quick Touch Borders, see Using the Quick Touch Borders.
