KODAK EASYSHARE P86 Digital Frame — Extended user guide

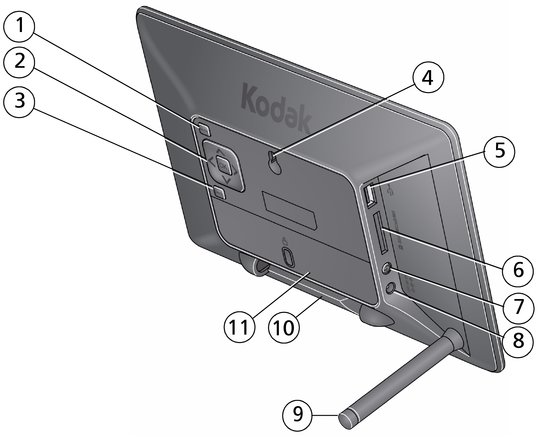

1

Mode button

6

Memory card slot - SD/MMC/ xD/MS

2

OK/4-way navigation

7

Power button

3

Back button

8

Power cable, DC-In 5V

4

Wall mount hole

9

Stand

5

USB high-speed host—connect to USB flash drive or card reader

10

11

Stand storage

Data plate with serial number

Icon

Description

Play—start playing a slide show.

Pause—resume a paused slide show (Pausing play on a single picture).

Pictures—find your pictures by: all, date, folders, keywords, people, favorites (Searching for and viewing your pictures ). The Pictures icon changes to indicate your current picture source: internal memory, memory card, USB flash drive or device.

Copy—copy pictures to the frame, appears when a memory card or USB device is inserted (Copying pictures to your frame).

Delete—delete pictures from the frame, appears when no memory card or USB device is inserted (Deleting pictures from your frame).

Picture Finder—play similar pictures, those taken on the same day as the picture on the screen (Picture Finder—auto-play similar pictures).

Transitions—choose a transition style between pictures, and how long each picture is displayed (Setting transitions between pictures).

Set Modes—choose your favorite style for collage, clock, and calendar modes. Then play pictures in these modes by pressing the mode button on the back of the frame (Setting viewing modes).

Settings—change your frame settings (Changing frame settings).
