FRU locator:

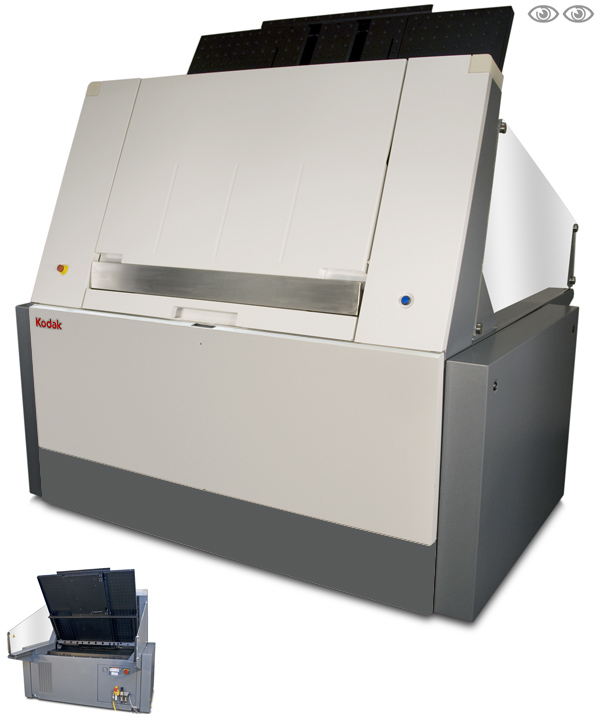

Trendsetter News and Trendsetter Q400/Q800 Series V platesetter with AL option—front/right side view

Secondary latch assembly Secondary latch assembly Door latch Door lock solenoid Status lights Status lights Rear left view of Trendsetter V AL Unload table Start button Components behind right side panel Leveling feet Leveling feet Lexan side panels Compnents behind the left side panel Autoloader manifolds behind front lower panel Engine components behind the right side of the front panel Engine components behind front the left side of the front panel E-stop button Autloloader load bay/load table
