Kodak EasyShare CX6230 zoom digital camera — User's Guide

Table of Contents > Taking Pictures > Liveview—Framing with the Camera Screen

---

2 Taking Pictures

Liveview—Framing with the Camera Screen

When you turn on Liveview, the camera screen displays a live image of what the lens sees. Use the camera screen to frame your subject.

IMPORTANT:

Liveview significantly reduces battery life.

		1. Turn the Mode dial to any Still capture position.

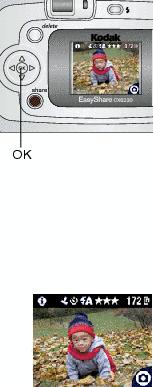

		2. Press the OK button to turn on Liveview.
		3. Frame your subject in the camera screen.
		4. Press the Shutter button half-way to set the exposure and focus.
		5. When the ready light glows green, continue pressing the Shutter button completely down to take the picture. When the ready light blinks green, the picture is being saved; you can still take pictures. If the ready light is red, wait until it turns green. See Flash Settings in Each Mode See Changing Picture-Taking Options.
		6. To turn off Liveview, press the OK button. NOTE: If Picture Quality is set to Best (3:2), the Liveview image is displayed at a 3:2 aspect ratio, as shown, with a black bar at the top of the screen.

To change the Liveview setting so that it is on whenever the camera is on, see Turning On Liveview in Still Modes.
