Kodak EasyShare Z1085 IS zoom digital camera — User guide

Table of Contents > Using the advanced features > P and M modes

3 Using the advanced features

P and M modes

Use Program and Manual modes when you want more control over your camera.

Mode	For	Press to control
	Ease of auto shooting with full access to most menu options. The camera automatically sets the shutter speed and aperture (f-stop) based on the scene lighting.	Exposure compensation (how much light enters the camera), ISO speed, and focus mode.
	The highest level of creative control. (To prevent blur, use a tripod for slow shutter speeds.)	Aperture, shutter speed, ISO speed, and focus mode.

NOTE:

Settings you change in P or M mode apply only to pictures taken in that mode. For example, if you change the Color Mode to Sepia while in P or M mode, you retain the default setting (Color) for Smart Capture and Scene modes. The settings, including Flash, are maintained for P and M modes—even when you change modes or turn off the camera.

Changing P or M mode settings

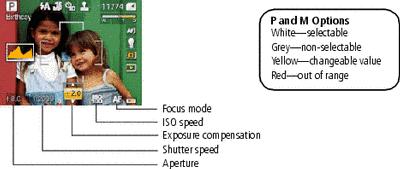

P and M modes control ISO, focus, exposure compensation, shutter speed, and aperture (f-number, also known as f-stop). Use the Menu button to control all other settings.

Turn the Mode dial to P or M.

Use to move between settings and to change the value.

NOTE:

Some settings may be unavailable (see P and M color options). The arrows disappear when you cannot make further value changes.

Take a picture.

Aperture - (also known as f-stop) control the size of the lens opening, which determines the depth of field.

Smaller f-stop numbers indicate a larger lens opening; good for portraits and low-light conditions.
Larger f-stop numbers indicate a smaller lens opening; keeps the main subject sharp; good for landscapes and well-lit conditions.


	Shutter speed - control how long the shutter stays open.


	Exposure Compensation - adjust the exposure; good for controlling backlit or non-standard scenes. If the picture is too light, decrease the setting; if it's too dark, increase the setting.

ISO speed - adjust the camera's sensitivity to light. Higher ISO indicates greater sensitivity. ISO 8000 is available only in 3.1 MP and lower picture size.

NOTE:

A higher ISO may produce unwanted grain or "noise" in a picture.


	Focus mode - select a large or concentrated area of focus.

Focus mode		Description
	Normal AF	Focus setting for general picture-taking.
	Macro	Sharpness and detail in pictures at close range. Use available light instead of flash, if possible. The camera automatically sets the focus distance depending on the zoom position. The close-up distances are: Wide angle: 7.9–27.6 in. (0.2–0.7 m) Telephoto: 19.7–39.4 in. (0.5–1.0 m)
	Infinity	Distant subjects. Auto-focus framing marks are unavailable.
	Manual	Focus is at center position. When MF icon appears, press OK to display focus indicator. Press to adjust the setting. A magnified image appears on the screen when adjusting focus position.
