Kodak EasyShare Z8612/ZD8612 IS digital camera — User guide


Table of Contents > Using the advanced features > Using PASM modes

3 Using the advanced features

Using PASM modes

Use PASM modes when you want more control over your camera and pictures.

Mode When to use Press to control

P

Program mode offers the ease of auto shooting with full access to all menu options. The camera automatically sets the shutter speed and aperture (f-stop) based on the scene lighting.

Exposure compensation (how much light enters the camera), flash compensation, and ISO speed

A

Use Aperture Priority mode to control depth of field (the range of sharpness). The aperture setting may be affected by optical zoom.

Aperture, exposure compensation, flash compensation, and ISO speed

S

Shutter Priority mode is primarily used to prevent blur when your subject is moving. The camera automatically sets the aperture for proper exposure. (To prevent blur, use a tripod for slow shutter speeds.)

Shutter speed, exposure compensation, flash compensation, and ISO speed

M

Manual mode offers the highest level of creative control. (To prevent blur, use a tripod for slow shutter speeds.)

Aperture, shutter speed, flash compensation, and ISO speed

NOTE: Settings you change in P, A, S, or M modes apply only to pictures taken in those modes. The settings, including Flash, are maintained for P, A, S, and M modes—even when you change modes or turn off the camera. Use Reset Camera (in the Setup menu) to reset P, A, S, or M mode to its default setting.

Changing P, A, S, or M mode settings

  1. Turn the Mode dial to P, A, S, or M.

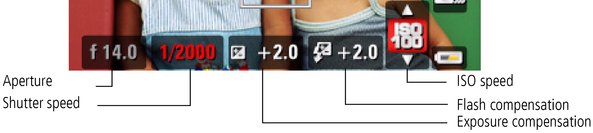

  2. Press to access available settings:

Aperture - (also known as f-stop) control the size of the lens opening, which determines the depth of field.

  • Smaller f-stop numbers indicate a larger lens opening; good for low-light.

  • Larger f-stop numbers indicate a smaller lens opening; keeps the main subject sharp; good for landscapes and well-lit conditions.

Shutter speed - control how long the shutter stays open. (Use a tripod for slow shutter speeds.)

Exposure Compensation - adjust the exposure. If the picture is too light, decrease the setting; if it's too dark, increase the setting.

Flash Compensation - adjust flash brightness.

ISO - adjust the camera's sensitivity to light. Higher ISO indicates greater sensitivity.

NOTE: A higher ISO may produce unwanted "noise" in a picture. ISO 3200 available only in 2.2 and lower picture sizes.
