1 Using different modes

Using Automatic Panorama

Pan or "sweep" up to 180 degrees horizontally or 120 degrees vertically to create a single, wide image (as opposed to Panorama SCN mode, where you manually take 2–3 pictures).

Choose the direction of panning

  1. Turn the Mode dial to Creative mode .

  2. Press and to highlight Automatic Panorama, then press OK.

  3. The default panning direction is Left-to-Right. To change it:

    • Press to highlight the Automatic Panorama icon, then press OK.

    • Press for Right-to-Left, Bottom-to-Top, or Top-to-Bottom. Then press OK.

Take the picture

Set the lens to wide (no zoom). Choose stationary subjects.

  1. At your starting point, press the Shutter button halfway down, then press completely down and hold it.

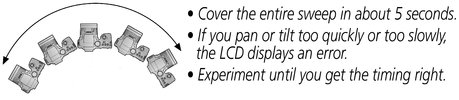

  2. Keeping the Shutter button pressed, slowly pan or tilt.



  3. Release the Shutter button when the LCD displays "Processing."

    The camera automatically stops recording images at approximately 180 degrees horizontally or 120 degrees vertically (depending on scene content).

  4. When finished, turn the Mode dial to another mode.
