KODAK EASYSHARE Digital Frame — S730


Table of Contents > Getting started > Navigating using the Quick Touch Borders

1 Getting started

Navigating using the Quick Touch Borders

IMPORTANT: The display screen is not touch-sensitive. Do not touch it. Instead, tap the lights in the right and bottom borders.

CAUTION:
Only use your finger on the borders. Borders do not react to sharp or metal objects—and they may damage the border or screen.

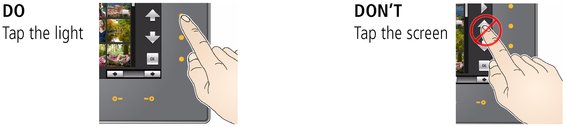

Touch the lights—not the screen

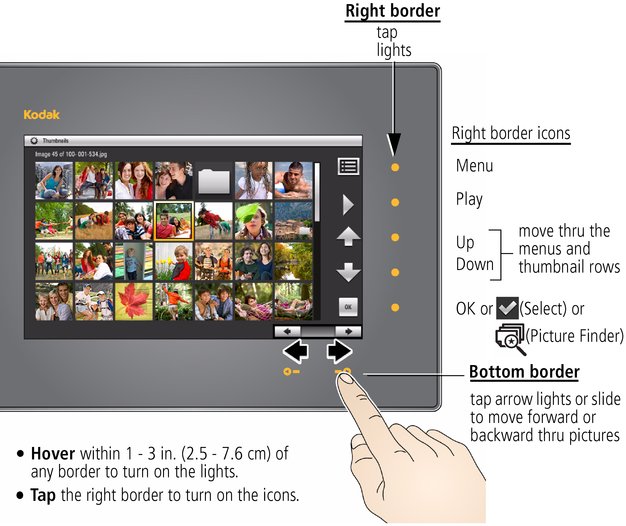

Only the lights on the right and bottom Quick Touch Borders are touch-sensitive. The screen and other borders are not.

So, for example, when this guide says "Tap the up arrow ':

Tapping on the right border
  • Tap the light next to an icon to select it. Icons change color when they're selected.

  • Tap the light next to the up/down arrows to move up or down through menus or rows of thumbnails.

  • Tap the light next to OK or to select the highlighted item.

Tapping and sliding on the bottom border
  • Tap the arrow lights to move the highlight one picture at a time or to change option values.

  • Slide between the arrow lights to scroll through pictures: like turning the pages of a book, slide left ¬ to go forward, slide right ® to go back.

  • For faster scrolling through large numbers of thumbnail pictures, touch and hold an arrow light (3 seconds).
