KODAK EASYSHARE Digital Frame — Extended user guide

Table of Contents > Product Overview

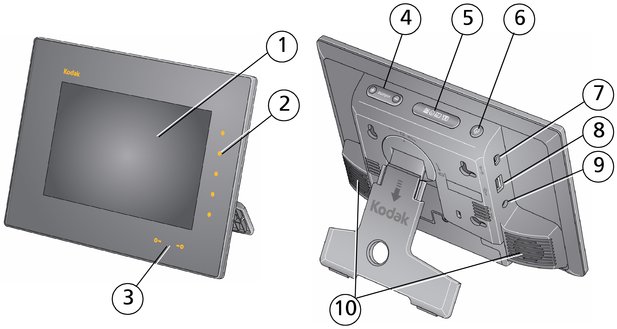

Front/Side Views

1	LCD screen	4	Volume button
Quick Touch Borders:		5	Mode button
2	Side touch lights—tap only	6	Power button
3	Bottom touch lights—slide/tap arrows	7	USB connector (to USB drive)
		8	USB connector (to computer)
		9	Audio out (headphones or speakers)
		10	Speakers (2)

NOTE:

When your hand is within 1 - 3 in. (2.5 - 7.6 cm) of the borders, the lights turn on and indicate where to touch. Tap a light on the right border to turn on the screen icons. To use the Quick Touch Borders, see Navigating using the Quick Touch Borders.

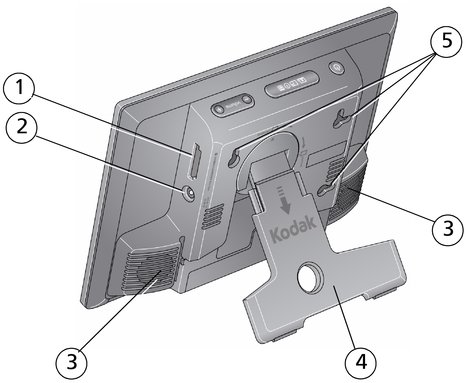

Back View

1	Memory card slot - SD/SDHC/MMC/XD/ MS/MS Pro Duo	3	Speakers (2)
1	Memory card slot - SD/SDHC/MMC/XD/ MS/MS Pro Duo	4	Rotating stand
2	DC-In 12V 1.5A	5	Wall mounting holes (3)
