1 Getting started

An activation tab protects the remote control battery during shipment.


		Remove the tab to start using the remote. There is no need to open the battery compartment or to remove the battery.

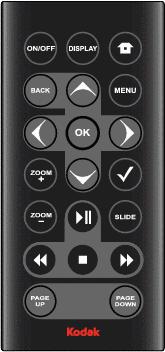

	Button		Press to:
		ON/OFF	turn on/off the HDTV dock.
		DISPLAY	turn on/off picture/video status information bar.
		Home	return to the home screen.
		BACK	return to the previous screen. stop a slide show, display thumbnails.
		MENU	display the menu choices.
		OK	accept the current selection.
		4-way	navigate through pictures or menus.
		ZOOM +	increase picture magnification.
		ZOOM -	decrease picture magnification.
		select	mark pictures for an operation.
		SLIDE	play a slide show.
		play/pause	play or pause a video or slide show.
		rewind	fast rewind a video.
		fast forward	fast forward a video.
		stop	stop a video, display the first frame. stop a slide show, display thumbnails.
		PAGE UP	display the previous page of images.
		PAGE DOWN	display the next page of images.

Use the Menu button to work with your pictures/videos and change your dock settings.

NOTE:

The menu information appears on your television (see Viewing pictures and videos).

Picture/video menu options
Rotate Available for pictures only.	See Rotating pictures .
KPT (Kodak Perfect Touch)	See Using Kodak Perfect Touch technology.
Crop	See Cropping pictures .
Print Available when a printer is connected to your dock.	See Printing pictures.
Make Picture Available for videos only	See Making a picture from a video.
Copy	See Copying with your dock.
Protect/Unprotect	See Protecting pictures/videos from deletion.
Delete	See Deleting pictures/videos.

Dock settings	Options
Slide show duration Available during slide shows only.	See Changing the slide show display interval.
Language	See Setting your language.
Video Out resolution	720p 1080i
About	Check your dock model number and firmware version.
